The EOP Series RFI power line filters are general purpose filters which are effective in removing both common and differential mode noise for susceptibility applications. These filters have low leakage current for European safety requirements.
The compact design allows PC mounting with minimal space requirements. Available from 1 to 10 amps, the filters provide a cost effective alternative to on board components.
EDP Series
The EDP Series RFI filters provide enhanced differential mode performance for applications requiring more line to line protection. The EDP filters feature low leakage current for European safety requirements.
This series is likewise PC board mounted and is only slightly taller than the EOP Series filters. The EDP filters are also available up to 10 amps.

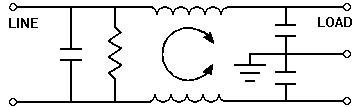

Electrical Schematic
EDP/EOP
Resistor positions for reference only.
Specifications
Maximum leakage current, each line-to-ground@120 VAC 60 Hz:.25mA @250 VAC 60 Hz:.50mA Hipot rating (one minute) line-to-ground1500 VAC line-to-line1450 VDC Operating frequency:50/60 Hz Rated voltage:120/250 VAC Rated current:@120 VAC@250 VAC 1EDP/1EOP1A1A 3EDP/3EOP3A3A 6EDP/6EOP6A6A 10EDP/10EOP10A10A EOP - Minimum insertion loss in dB: Line-to-ground in 50 ohm circuit Current Frequency-MHz Rating.15.7358102030 13447435050402010 32131404848402015 61525364545402015 10 415263535301510 Line-to-line in 50 ohm circuit Current Frequency-MHz Rating.15.5 1 2 4102030 1 1 6193948523835 3 1 4 9 928413635 6 1 4 9 940404235 10 1 4 9 914354235 EDP - Minimum insertion loss in dB: Line-to-ground in 50 ohm circuit Current Frequency-MHz Rating.15.5151030 1324154544640 3182835414040 6102028374040 10 51419273340 Line-to-line in 50 ohm circuit Current Frequency-MHz Rating.15.5151030 1 41442424438 3 41424383838 6 41422303434 10 61622405045Case Styles
Metric shown in italics.EDP/EOP
Pins .025 square Mounting Holes Pattern and Clearance

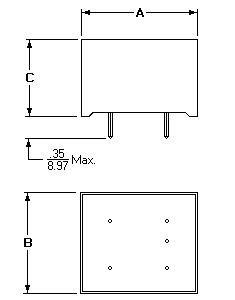

Case Dimensions
Metric shown in italics. ABC Part No.(max)(max)(max) EDP1.441.240.95 36.631.524.15 EOP1.441.240.78 36.631.519.9
