This is a new generation of compact RFI filters with IEC socket. A totally new design in both the internal structure and manufacturing process makes this new series cost effective and compact. The EEA Series supercedes the EF Series by providing supe rior performance, particularly in the common mode at low frequencies. Mechanically, its slimmer size makes it compatible with all similar filters in the market.

EEB Series

This is a new generation of compact RFI filters with IEC socket. A totally new design in both the internal structure and manufacturing process makes this new series cost effective and compact. Electrically, the EEB provides enhanced differential mode performance compared to both the EEA and EF series. Mechanically, its slimmer size makes it compatible with all similar filters in the market.

Electrical Schematic

See Corcom's new EEC Series for lower cost alternatives.

Resistor positions for reference only.

Specifications

Maximum leakage current, each
line-to-ground@ 120 VAC 60 Hz:.25 mA
@ 250 VAC 50 Hz:.42 mA

Hipot rating (one minute):
line-to-ground2250 VDC
line-to-line1450 VDC

Operating frequency:50/60 Hz

Rating voltage:120/250 VAC

Minimum insertion loss in dB:

EEA
Line-to-ground in 50 ohm circuit

Current                   Frequency-MHz
Rating.01.05.10.15.51.05.01030
1A122329324147474740
3A-1015193036485047
6A- 1 4102228424847
10A- 1 3 51420323847

Line-to-line in 50 ohm circuit

Current                 Frequency-MHz
Rating.5011.5351030

1A191932424540
3A24 620354540
6A24 6 6244040
10A14 5 5 53040

EEB
Line-to-ground in 50 ohm circuit

Current Frequency-MHz
Rating .01 .05 .10 .15 .51.0 5.0   1030

1A122329324147474740
3A -1014183036485047
6A - 1 4102228424847
10A - 1 3 51420323847

Line-to-line in 50 ohm circuit

CurrentFrequency-MHz
Rating.01 .15 .50 1.0 3.05.01030

1A 1 3142341475044
3A 1 2111425384440
6A 1 2101420334240
10A 1 2101619193940

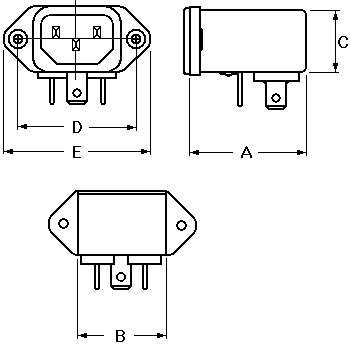

Case Styles
Metric shown in italics.

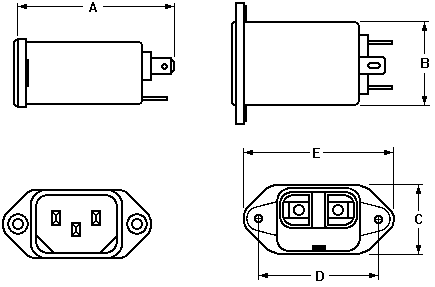

EEA1/EEB1



Typical dimensions
Fastons:.250 (3)Holes:.07 Dia.Mounting holes:.132 Dia. (2)
6.351.83.35

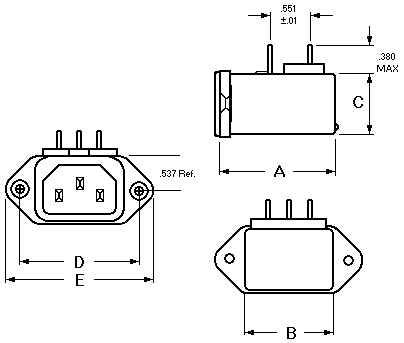

EEAP/EEBP



Holes:.07 Dia.Mounting holes:.132 Dia. (2)
1.83.35

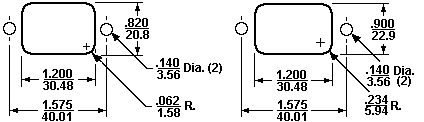

Recommended Panel Cutouts



Panel cutout (Back mount)

Tolerance +/-.005
0.13

ABCDE
Part No.(max)(max)(max)+/-.010(max)

EEA12.121.110.811.5751.98
53.828.220.640.0150.3

EEA21.541.110.811.5751.98
39.228.220.640.0150.3

EEAP1.541.110.811.5751.98
39.228.220.640.0150.3

EEB12.121.110.811.5751.98
53.828.220.640.0150.30

EEB21.541.110.811.5751.98
39.228.220.640.0150.30

EEBP1.541.110.811.5751.98
39.228.220.640.0150.30

EEAP/EEBP Model PCB Layout
