EDK Series

The EDK series has the same high performance line-to-line attenuation while still meeting the very low leakage current requirements of SEV, VDE portable equipment and UL 544 nonpatient care equipment.

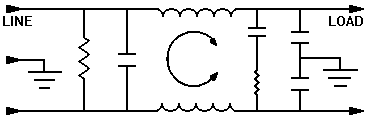

Electrical Schematic

Resistor positions for reference only.

VDK Models EDK Models
Maximum leakage current,
each line to ground
@ 120 VAC 60 Hz:.50 mA.25 mA
@ 250 VAC 50 Hz:.90 mA.50 mA

Hipot rating (one minute):

line-to-ground2250 VDC
line-to line1450 VDC

Operating frequency:50/60 Hz

Rated voltage:120/250 VAC

Rated current:@ 120 VAC @ 250 VAC

1VDK/1EDK1A1A
3VDK/3EDK3A3A
6VDK/6EDK6A6A
10VDK/l0EDK10A8A
20VDK/20EDK20A16A

Minimum insertion loss in dB:
Line-to-ground in 50 ohm circuit

Current               Frequency-MHz
Rating.15.5151030

VDK Models
1A,3A183040484840
6A, 1A,
 20A102230394450

EDK Models
1A, 3A172733454540
6A, 1OA,
  20A101925344046

Line-to-line in 50 ohm circuit

Current              Frequency-MHz
Rating.15.5151030

VDK, EDK Models
1A, 3A184762605045

6A, 10A,
   20A 20 43 55 65 60 55

Case Styles
Metric shown in italics.

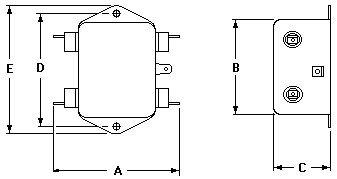

VDK1/EDK1



Typical dimensions
Fastons:.250 (5)Holes:.07 Dia.Solder Tabs:.07 x .16
6.351.81.8 x 4.1
Mounting holes:.188 Dia (2)
4.78

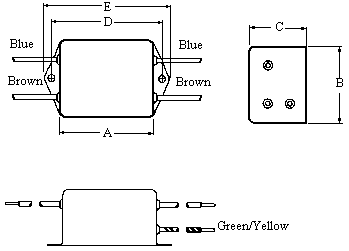

VDK3/EDK3



Typical dimensions
Wire leads:4.0"Mounting holes:.188 Dia. (2)
101.64.78

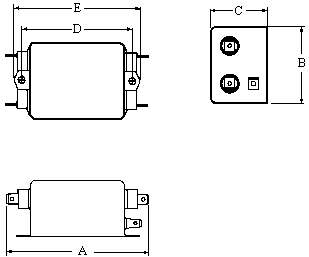

20VDK1/20EDK1



Typical dimensions
Fastons:.250 (5)Holes:.07 Dia.Mounting holes:.188 Dia. (2)
6.351.84.78

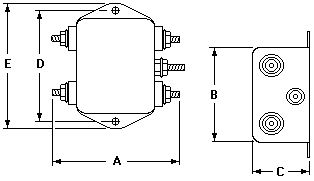

20VDK6



Case Dimensions
Metric shown in italics.

ABCDE
Part No.(max)(max)(max)+/-.015(max)

1VDK1, 1EDKL3.352.071.162.3752.81
85.0952.629.560.3371.4

1VDK3, 1EDK32.072.071.16.2.3752.81
52.652.629.560.3371.4
3VDK1, 3EDKl3.852.071.162.9383.35
6VDK1, 6EDKl97.852.629.574.6385.1

3VDK3,3EDK32.562.071.162.9383.35
6VDK3,6EDK365.052.629.574.6385.1

1OVDK1,3.852.071.322.9383.35
10EDKl97.852.633.574.6385.1

1OVDK3,2.572.071.322.9383.35
10EDK365.352.633.574.6385.1

2OVDK1,3.852.581.782.9383.35
20EDKl97.865.545.274.6385.1

2OVDK63.462.581.782.9383.35
87.965.545.274.6385.1
