P Serie Filters

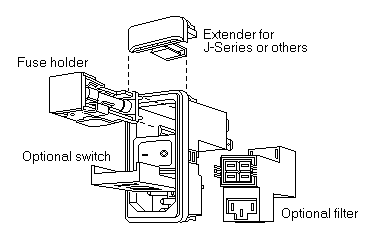

Multifunction-Power-Entry-Module

  • IEC-plug with/without filter
  • Two pole line switch (optional)
  • Double voltage selector
  • Combined fuse holder (twist protected)
  • Line filter to 10 A/250 VAC (optional, also for medical applications)
  • Mounting cutout appr. 27 x 56 mm only
  • Filter mountable in the field

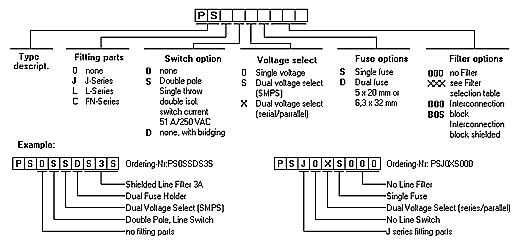

    Ordering information


    Filter selection table
    Filter Typemax. Current UL/VDE
    Shielding
    Inductance
    Capacity
    Cy
    Cx
    S3S
    3A
    yes
    		2x 2,0mH3nF0,047uF
    S30
    3A
    no
    		2x 2,0mH3nF0,047uF
    S6S
    6A
    yes
    		2x 0,66mH3nF0,047uF
    S60
    6A
    no
    		2x 0,66mH3nF0,047uF
    SXS
    10A
    yes
    		2x 0,36mH3nF0,047uF
    SX0
    10A
    no
    		2x 0,36mH3nF0,047uF
    Max. leakage current line to ground 0,5 mA at 250 VAC/50Hz
    Filter selection table for medical Applications
    Filter Typemax. Current UL/VDEShieldingInductance
    capacity
    Cy
    Cx
    H3S
    3A
    yes
    		2x 2,0mH
    -
    		0,047uF
    H30
    3A
    no
    		2x 2,0mH
    -
    		0,047uF
    H6S
    6A
    yes
    		2x 0,66mH
    -
    		0,047uF
    H60
    6A
    no
    		2x 0,66mH
    -
    		0,047uF
    HXS
    10A
    yes
    		2x 0,36mH
    -
    		0,047uF
    HX0
    10A
    no
    		2x 0,36mH
    -
    		0,047uF
    Max. leakage current line to ground < 5 uA at 250 VAC/50Hz

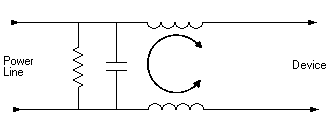

    Electrical Schematic

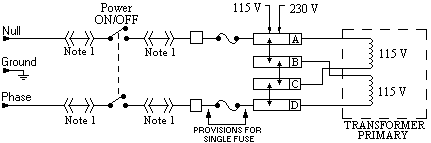

    Dual Voltage


Note 1: Jumpers are not required if a filter
or interconnection module is used.

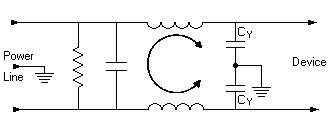

    Filter S3 / S6 / SX

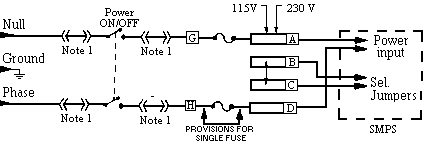

    Switching Power Supply




    Filter H3 / H6 / HX







    Description of possible choices

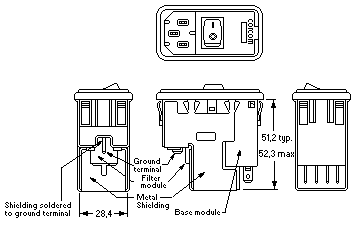

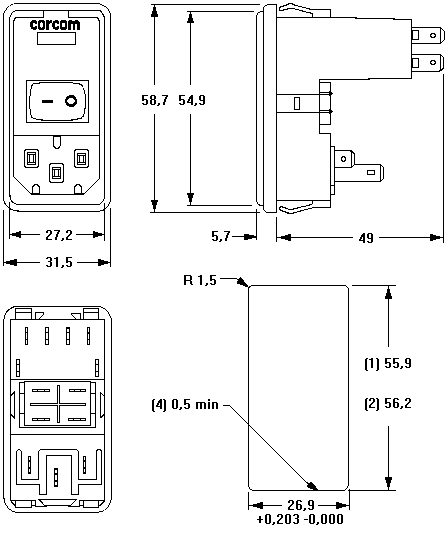

    Case Styles and typ. sizes for types with shielded filter

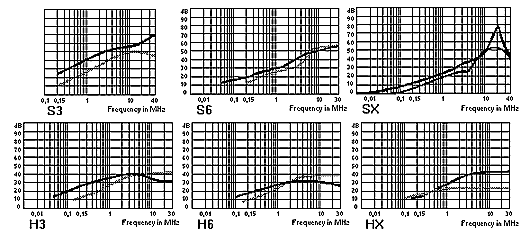

    Typ. Insertion Loss

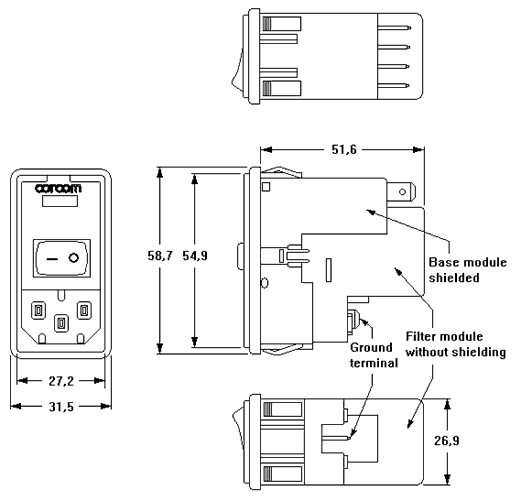

    Case styles and typ. sizes for types without filter


    PS


Note 4:
For snap-in applications, the 26.9 mm sides of the cutout must
have a 0.5 mm radius on the installation side


Panal thickness:1) 0,8 - 2,0
2) 2,1 - 2,9
3) 1,5 - 2,3

    PSJ

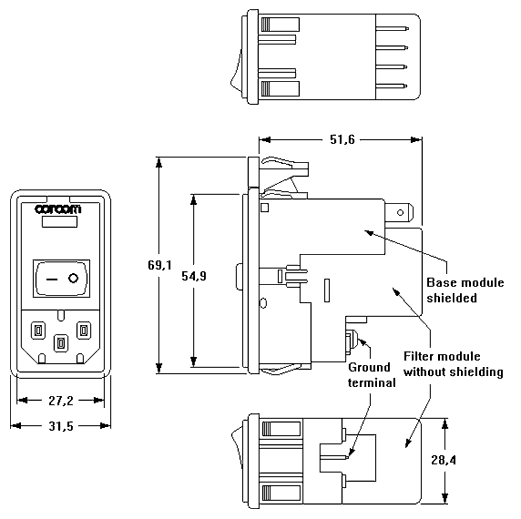

    Case styles and typ. sizes for types with Filter


    PS with Filter




    PSJ with Filter
